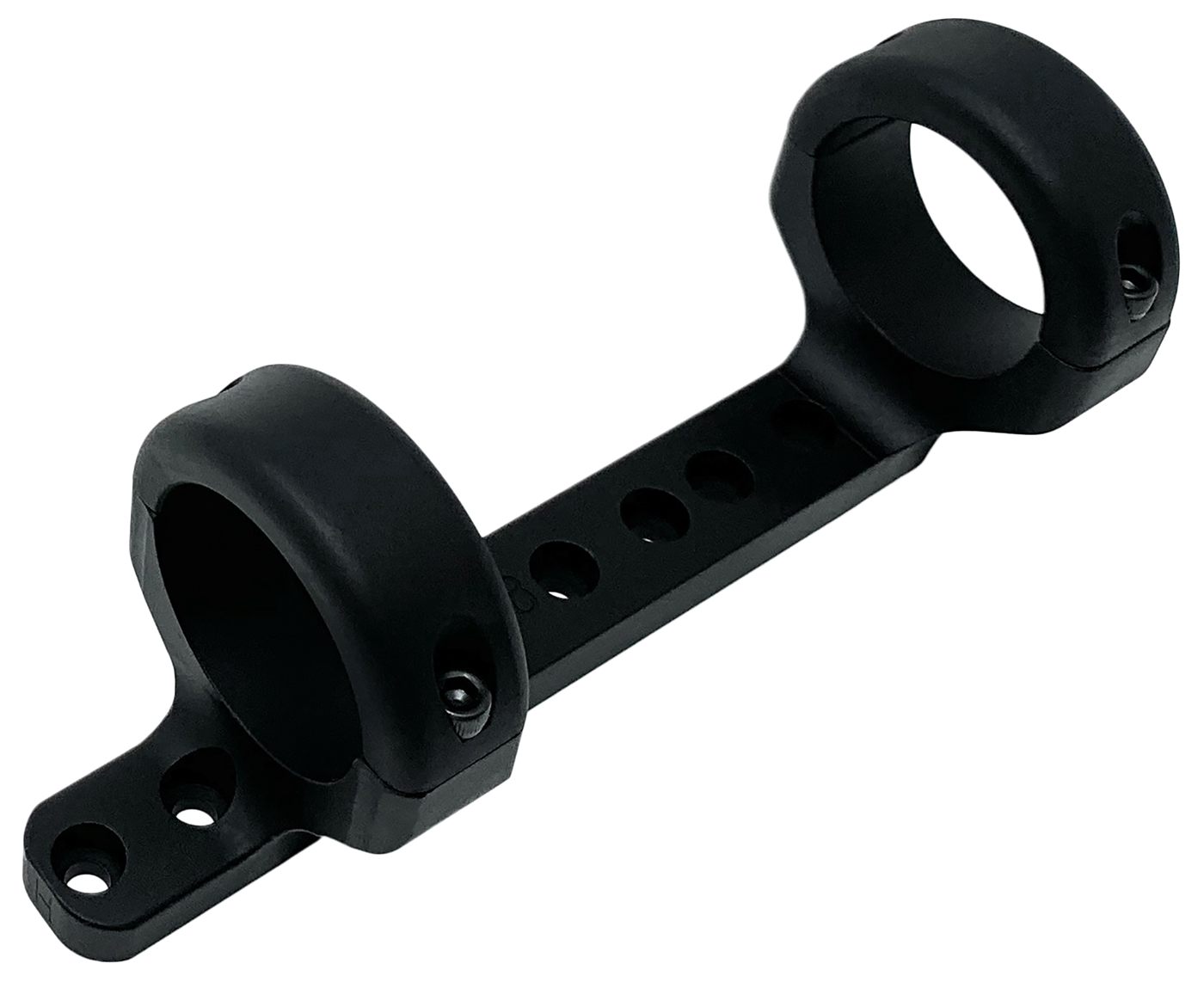

Marlin 1894 1895 336 XLR: Will also fit Henry Rifles that are completely flat on top of receiver and are drilled and tapped. Mount fits both left and right hand firearms. Base screws are 8-40 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Base screws use a 9/64″ Allen wrench and ring screws use a 7/64″ Allen wrench. Outside to outside of rings is 4.08″. Standard rings are .63″ wide and have 2 screws per ring. 6 Hole to hole spacing dimensions are .50″ 1.88″ .50″ .37″ .50″. Mount has 6 holes thru it so it can be used on the long and short receiver. 2 holes will not be used. Depends on the gun to what 4 will be used. Height of mount from top of receiver to centerline of scope tube is - medium 1.06″ high 1.19″. Main Features Finish: Matte Black Other Features 74.95,Brand: DNZ Application: MARLIN Condition: New Dimension: 2.10 X 3.85 X 9.55 Gun Type: Rifle Height: 2.1000 Length: 4.96" Material: 6061-T6 Aluminum Model: Game Reaper-Marlin Mount Height: 1.19" Mount Type: To Receiver Other Features: PRECISION MACHINED FROM A Pieces: 1 Ring & Mount Action: Lever Action Ring & Mount Finish: Black Ring & Mount Pieces: 1-Piece Ring & Mount Ring Height: High Ring & Mount Ring Height Actual: 1.19" Ring & Mount Tube Diameter: 30mm Ring & Mount Type: Integral Rings & Base Ring Height: High Rings Included: Yes Style: INTEGRAL Tube Size: 30MM Type: ONE-PIECE Type Of Rings Needed: NONE Width: 3.8500 Warranty: Mfg Limited Lifetime Part Number: 12048 UPC: 879956005113 Weight: 0.36 lbs
