Product Specifications
| Manufacturer | American Technologies Network |
| Model / MPN | TIMNBLT625 |
| Type | Accessory |
| Transfer | No FFL required |
Description
Accessory
The advanced thermal sensor offers resolutions of 384x288 and 640x512 (50 Hz) with a 12 μm pixel size and an exceptional NETD rating of <25mK enhancing sensitivity to temperature variations for improved image clarity.
Select from five color palettes to customize your viewing experience: White Hot Black Hot Rainbow Iron Red and Alarm.

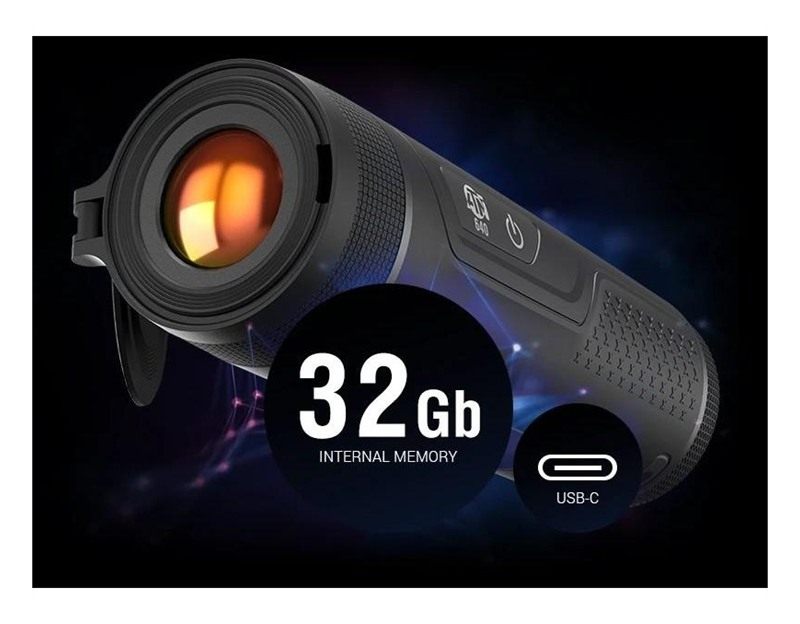

Offers integrated features for capturing still images and recording video videos and pictures can be stored on the device's internal memory of 32Gb.
Connect the monocular wirelessly to your smartphone and app to adjust settings capture photos or record thermal videos directly from your phone.
Easily fits in a pocket for convenient portability allowing you to take it anywhere you go.

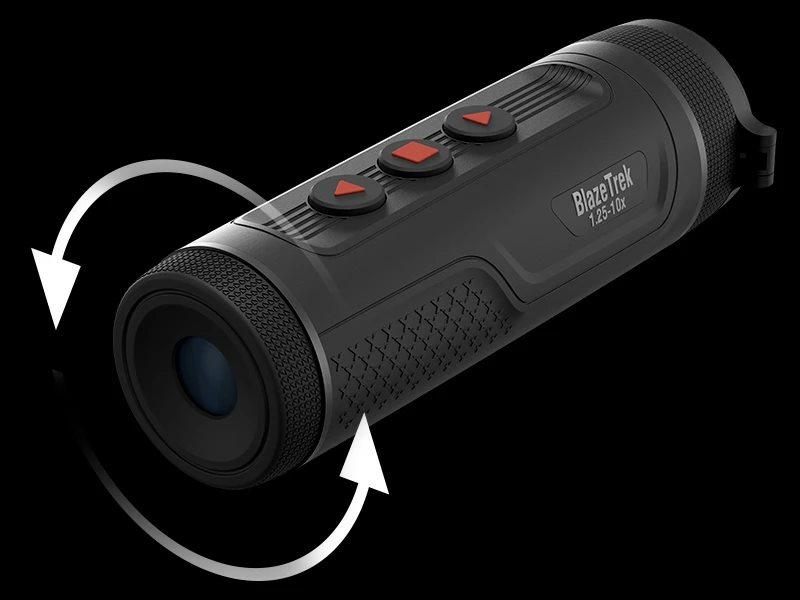

Adjust the monocular for different users using the diopter adjustment wheel ensuring a clear and sharp image for each viewer.
Main Features
Finish: Black
Weight: 0.7 lbs.
Other Features
2295.00,Battery Count: 1
Battery Count: 1
Battery Life: 7 hrs
Battery Run Time: 7 hr
Battery Size: Li-ion
Battery Type: Rechargeable
Color: Black
Condition: New
Controls: Direct
Country Of Origin: USA
Dimension: 3.95 X 5.10 X 7.15
Field Of View: 17.50 x 14 Degrees
Finish Type: Black
Five Color Palettes To Choose From: White Hot, Black Hot, Rainbow, Iron Red, and Alarm for a custom viewing experience. Quality thermal sensor
Height: 3.9500
Length: 7.1500
Magnification: 1.7X - 13.5X
Material: Aluminum
Model: Blaze Trek Monocular
Objective: 25mm
Objective Size: 25mm
Optics App Support: ATN Blaze App
Optics Class: Thermal Imaging
Optics Finish: Anodized
Optics Length: 6.2"
Optics Mounting System: Not Included
Optics Objective: 25
Optics Shockproof: Yes
Optics Type: Thermal Handheld Monocular
Other Features: 640X512, 50HZ, 1.7-13X,800X600
Overall Length: 6.2"
Power: 1.6-13X
Resolution: 640x512, 12 Microns, 50 Hz
Reticle: Multiple Patterns & Color
Thermal Bluetooth: Yes
Thermal Core: ATN Obsidian Core LT
Thermal Detector Type: 12um Uncooled 50 Hz
Thermal Diopter Adj: Yes
Thermal Display / Monitor Type: LCOS
Thermal Display Resolution: 800 x 600
Thermal Eye Relief: 15mm
Thermal Fov Deg: 17.5° x 14°
Thermal Human Detect Range: 1300 yds
Thermal Human Id Range: 260
Thermal Human Recog Range: 1050
Thermal Imaging Palettes: White Black & Green Hot / Iron Red / Alarm / Sepia
Thermal Magnification: 1.6-13x
Thermal Netd: Thermal Operating Temperature: -30°C to +55°C (-22°F to +131°F)
Thermal Optics Wi-Fi: Yes
Thermal Power Supply: Charging USB Type C
Thermal Recording Type: On-Board Video and Still Images
Thermal Sensor Frame (Refresh) Rate: 50 Hz
Thermal Sensor Pixel Interval: 12 um
Thermal Sensor Resolution: 640 x 512
Thermal Snapshot Capture: Yes
Thermal Standby Mode: Yes
Thermal Storage: 32 GB
Waterproof: IP67
Width: 5.1000
Warranty: Mfg 3 Year Limited
Part Number: TIMNBLT625
UPC: 658175124726
